ARMOUR METALS MACHINERY

SSP MULTIPRO™
Commercial/Residential U.S. Patent No. 5,425,259

Versatility

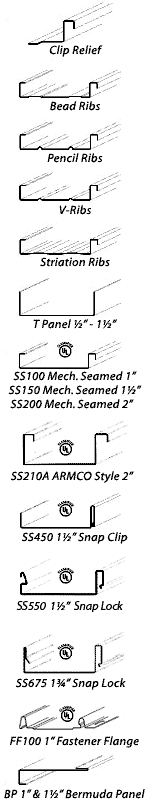

Ten Profiles… One Machine
The state-of-the-art SSP MultiPro^TM Panel Machine runs
variable widths, multiple gauges and various material types.

Available in both gas or electric configurations, the SSP roof panel machine sets the new standard for performance, durability, and flexibility.

STANDARD FEATURES

Separate Polyurethane Drive Rollers
Hardened Stainless Steel Forming Roller System
with Shear Dies
Hydraulic Drive and Shear
UL 90 Rated Panels
Two Sets of Bead, Pencil, or V Rib Rollers
Pre Wired for Computer Length & Batch Control
Gas or Electric Configuration
Welded Tubular Steel Frame

SPECIFICATIONS

SSP Panel Machine
Length 13’ 7” (4.1m)
Width 5’ (1.5m)
Height 4’3” (1.3m) w/ Over Head Rack
1’10” (.6m) w/o Over Head Rack
Weight 2200 lbs. (1450kg)

SSP On Trailer
Length 17’6” (5.3m)
Width 7’ (2.1m)
Height 6’3” (1.9m) with reel
Weight 4800 lbs. (2200kg)

Speed
75 ft./min (23m/min) Approx.

Drive
Hydraulically Driven Polyurethane Rollers

Shear
Hydraulically Powered, Infinitely Adjustable,
Hardened Tool Steel Blades and Dies, Panel Recognition Safety Photo Switch

Coil Width
15” to 30” (380mm to 760mm) (30” coil requires
remote decoiler or expandable reel)

Materials Formed
Steel 30 ga. to 22 ga. (.3mm to .8mm)
(painted, galvanized, aluminized)
Aluminum .019” to .040” (.5mm to 1.0mm)
Copper 16 oz. to 20 oz. 3/4 Hard
(.5mm to .7mm)
Terne Coat
Stainless 26 ga. (.5mm)
